Showing all 9 results

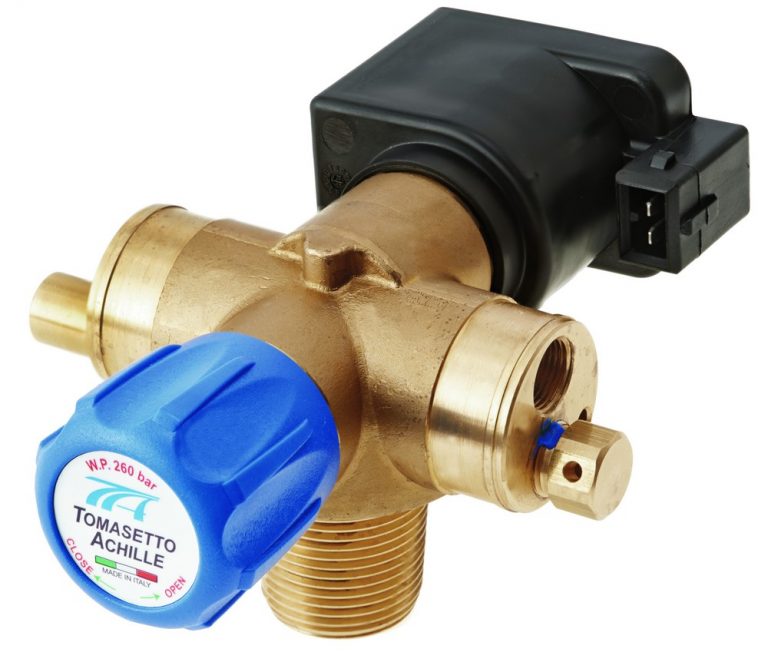

CNG cylinder automatic valve VM05CNG cylinder automatic valve VM05

CNG cylinder valves VM05 Automatic

CNG cylinder automatic valve VM05

CNG automatic cylinder valves VM05 are homologated in accordance with the European Regulations ECE R110, approved in accordance with ENARGAS and in compliance with ISO15500 standards.
Our VM05 valves are provided with manual tap, excess flow valve, solenoid valve and separated safety devices (thermofuse T-PRD and burst disc). They are also supplied with venting seal.



Important: these valves do not need the gas-tight housing.



VM05 Vented Automatic accessories:
VM4524 VM05 vented valve locking wrench
VM1023 Fitting accessories bag Ø6 mm
VM1025 Fitting and cap bag Ø6 mm
CNG cylinder valves VM05 Automatic HDCNG cylinder valves VM05 Automatic HD Tomasetto Achille

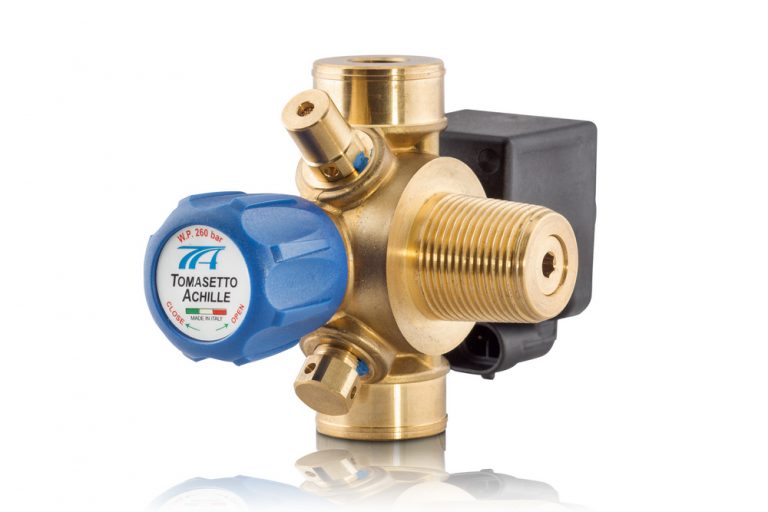

CNG cylinder valves VM05 Automatic HD

CNG cylinder automatic valve type HD

CNG automatic cylinder valves VM05 HD have been developed for heavy-duty applications, and are homologated in accordance with the European Regulation ECE R110 and in compliance with the ISO15500 standards.
VM05 HD valves are provided with manual tap, excess flow valve, high pressure solenoid valve and are equipped with separeted safety devices (thermofuse T-PRD and burst disc). VM05 HD is manufactured with bigger internal passages and can have bigger external connections, compared with VM05 Automatic, allowing a bigger gas flow.
Available in Vented and Unvented version



VM05 HD Accessories:
VM4577 VM05 HD valve locking wrench
VM1037 Fitting accessories bag Ø8 mm

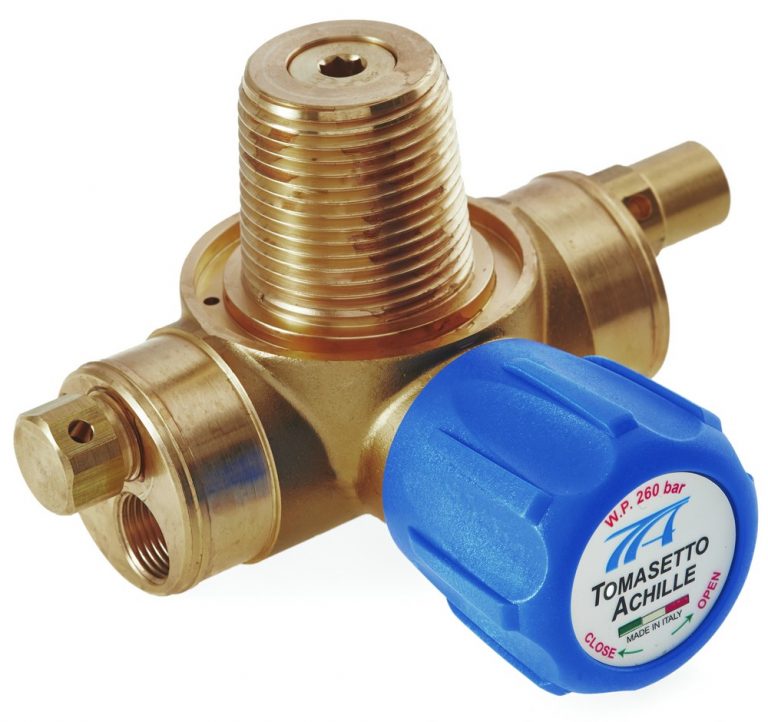

VM01 manual Vented 2D Tomasetto AchilleVM01 manual Vented 2D Tomasetto Achille

CNG cylinder valves VM01 Vented

CNG cylinder valve manual vented VM01

CNG manual vented cylinder valves are homologated in accordance with the European Regulation ECE R110 and in compliance with the ISO15500 standards.
Tomasetto CNG Vented valve is provided with manual tap and separeted safety devices (thermofuse T-PRD and burst disc). Available with or without excess flow valve.
These valves are supplied with venting seal.
Important: these valves do not need the gas-tight housing.



VM01 Vented Automatic accessories:
VM4586 VM05 vented valve locking wrench
VM1023 Fitting accessories bag Ø6 mm
VM1025 Fitting and cap bag Ø6 mm

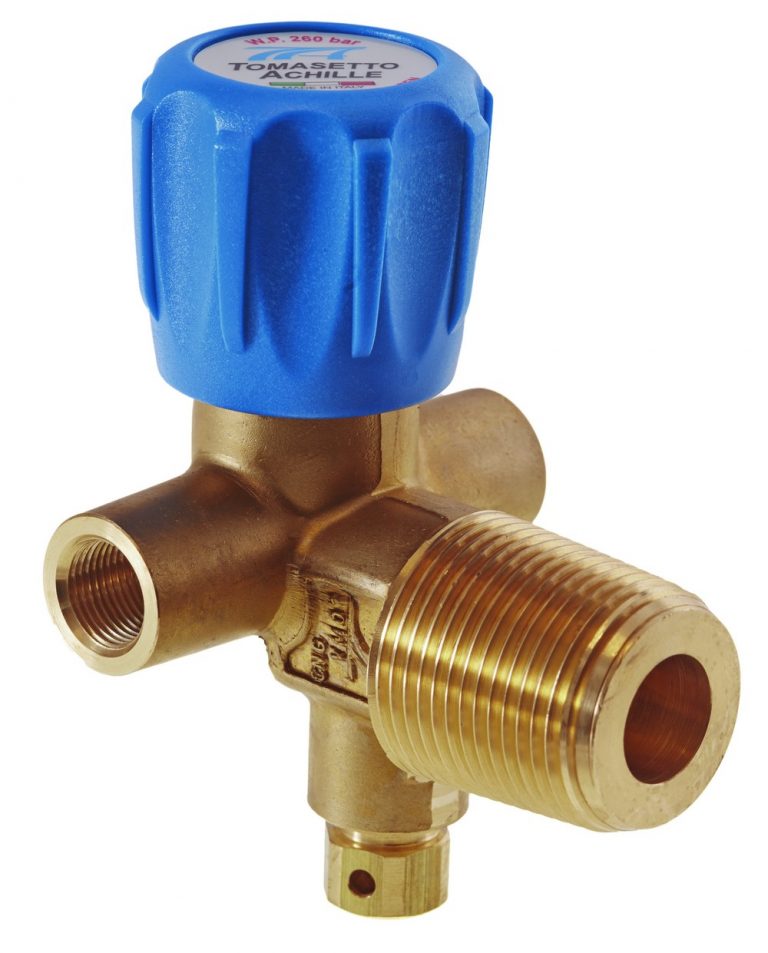

VM01 LIGHT 1D (with safety device)VM01 LIGHT 1D

CNG cylinder valves VM01 LIGHT

CNG cylinder valve manual unvented “LIGHT”

VM01 LIGHT are homologated in accordance with the European Regulation ECE R110 and in compliance with the ISO15500 standards; they have been developed for price sensitive markets.
Manual Unvented Light Valve is equipped with manual tap and can be provided with excess flow valve and integrated safety devices (thermo fuse T-PRD + burst disc).
VM01 Light is also available in EXTRA version, having bigger flow and internal threading M14x1.
VM01 LIGHT Standard accessories
VM4538VM01 LIGHT valve locking wrench
VM1024 Fitting accessories bag Ø6 mm
Accessori VM01 LIGHT EXTRA:
VM4576VM01 LIGHT Extra valve locking wrench
VM1037 Fitting accessories bag Ø8 mm

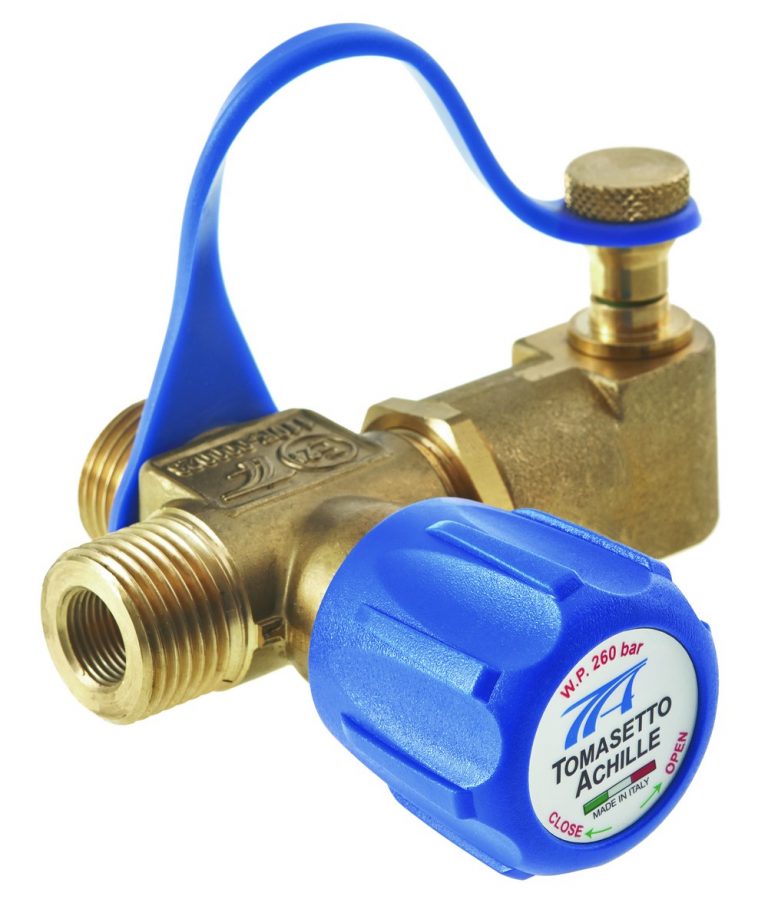

VMAT5313 - CNG filling valve NGV1 v.20 straight

CNG filling valves VM04 NGV1

CNG filling valve with NGV1 connector

CNG Manual Filling valves NGV1 type are homologated in accordance with the European Regulation ECE R110.



They are available in four different models:
STANDARD type, with manual tap and non-return valve, available with NGV1 and NGV1 ITALIA connectors
“T” type, without manual tap, with non-return valve, available with NGV1 and NGV1 ITALIA connectors
STRAIGHT, for direct connections, with non-return valve, available with NGV1 and NGV1 ITALIA connectors.
STRAIGHT SHORT, for direct connections, with non-return valve, available with NGV1 and NGV1 ITALIA connectors.
All NGV1 models are available in M12x1 and M14x1 configuration



VM04 NGV1 accessories:
VM1024 Accessories bag Ø6 mm
VM1037 Accessories bag Ø8 mm
VM1022 Filling valve iron fixing shaft

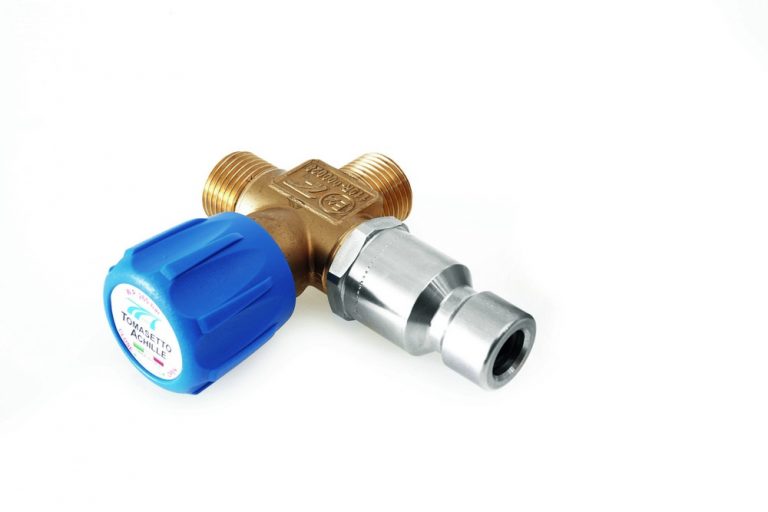

CNG filling valves VM04 NGV2

CNG filling valves with NGV2 connector

CNG Filling valves NGV2 type are homologated in accordance with the European Regulation ECE R110.
They are available in two different models:
 STANDARD type, with manual tap and non-return valve and NGV2 connector.
 “T” type, without manual tap, with non-return valve and NGV2 connector
STRAIGHT, for direct connections, with non-return valve, available with NGV2 connector
VM04 NGV2 accessories:
VM1024 Accessories bag Ø6 mm
VM1037 Accessories bag Ø8 mm
VM1022 Filling valve iron fixing shaft

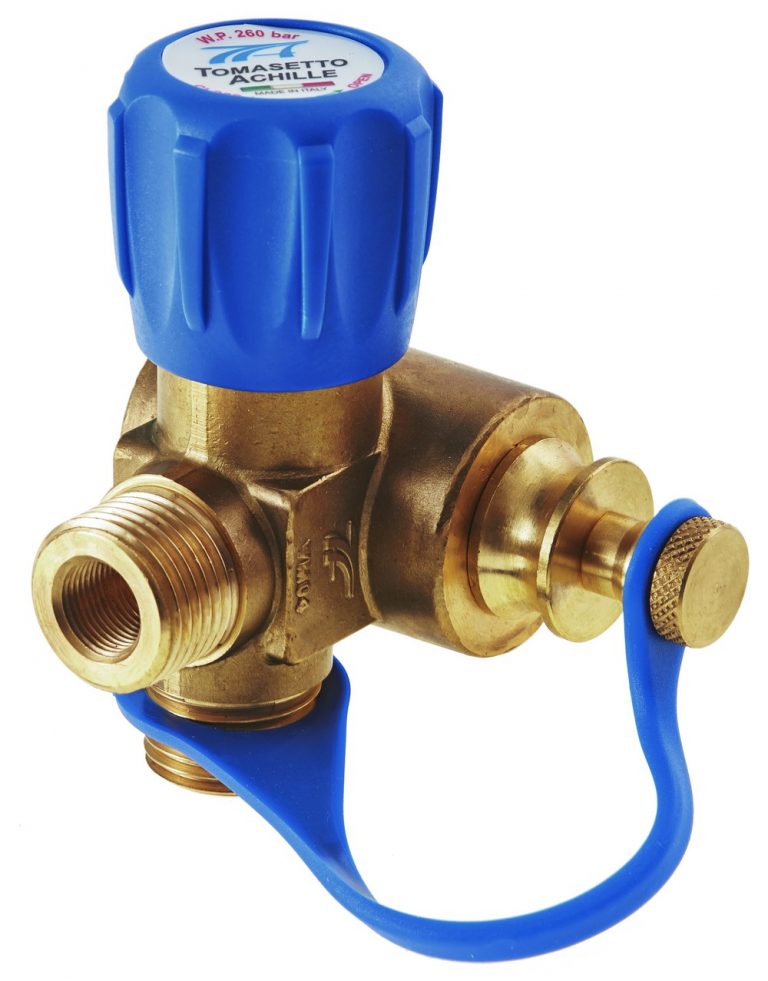

CNG filling valves VM04 Russia

Manual Filling Valve Russian type

CNG Manual Filling valves type RUSSIA have been developed for Eastern Europe and Central Asia markets and are equipped with manual tap and easy discharge tap.
They are available in two different models:
STANDARD, with M12x1 outlet connection pipe, d.6mm
EXTRA, with M14x1 outlet connection pipe, d.8mm
VM04 RUSSIA accessories:
VM1024 Accessories bag Ø6 mm
VM1037 Accessories bag Ø8 mm
VM1022 Filling valve iron fixing shaft

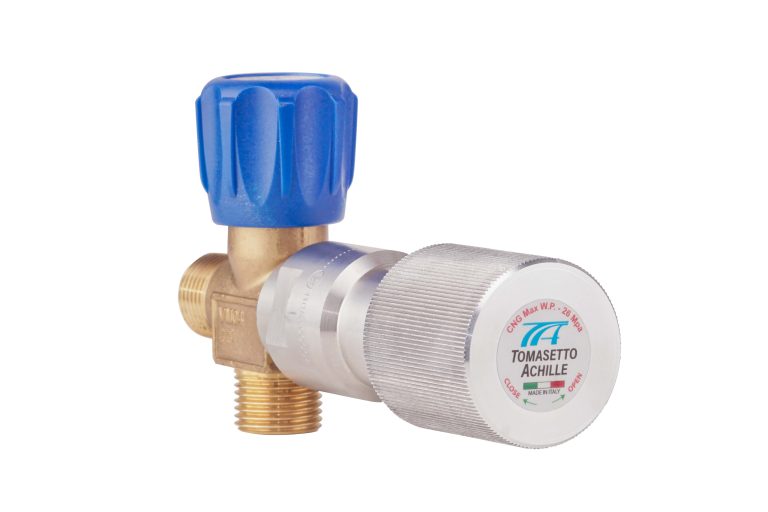

CNG filling valves VM04 PICO

CNG manual filling valves with PICO NZ, BR, ARG

Tomasetto CNG manual filling valves VM04 are homologated in accordance with the European Regulation ECE R110. CNG Manual Filling valves with PICO are provided with manual tap, discharge tap and are available with different types of connectors:

  • PICO New Zealand
  • PICO Brazil
  • PICO Argentina

VM04 PICO NZ, BR, ARG accessories:
VM1024 Accessories bag Ø6 mm
VM1022 Filling valve iron fixing shaft

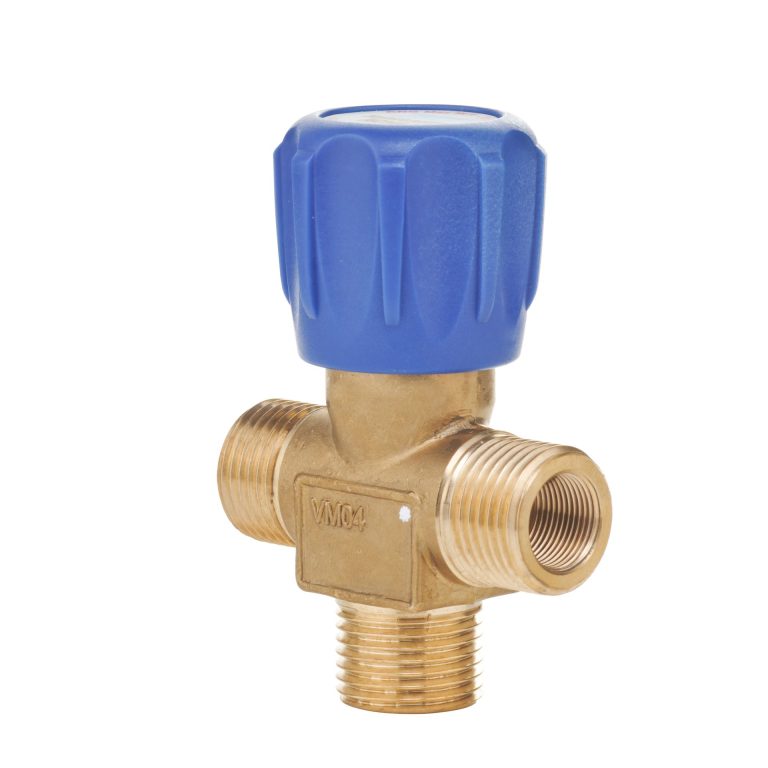

VM04 3-WAY CNG Valve

3 WAY CNG manual valves

Tomasetto CNG manual valves VM04 are homologated in accordance with the European Regulation ECE R110.
VM04 3-WAY valves are provided with manual tap and are available with several outlet connections.
VM04 3-WAY Valves Accessories:
VM1024 Accessories bag Ø6 mm
VM1030 CNG cylinder valve LIGHT and filling valve straight fittings bag Ø6 mm
VM1037 Accessories bag Ø8 mm
VM1022 Filling valve iron fixing shaft
